- 4.3” color LCD display
- Patented offset rotor technology for safe and simple tube maintenance
- Optical tube leak detection standard
- Flow rates up to 32 GPH and 100 PSI
- (4) digital inputs, (4) outputs, (2) analog 4-20mA inputs and outputs, and (2) 0-10VDC inputs
- Standard MODBUS RTU connection and optional Profibus, MODBUS TCP, and Ethernet IP connections
- Onboard real-time clock and calendar for timed events, maintenance tracking, cycle counting, and performance reporting
- Equipped with a USB port for firmware upgrades and download of performance data and event logs

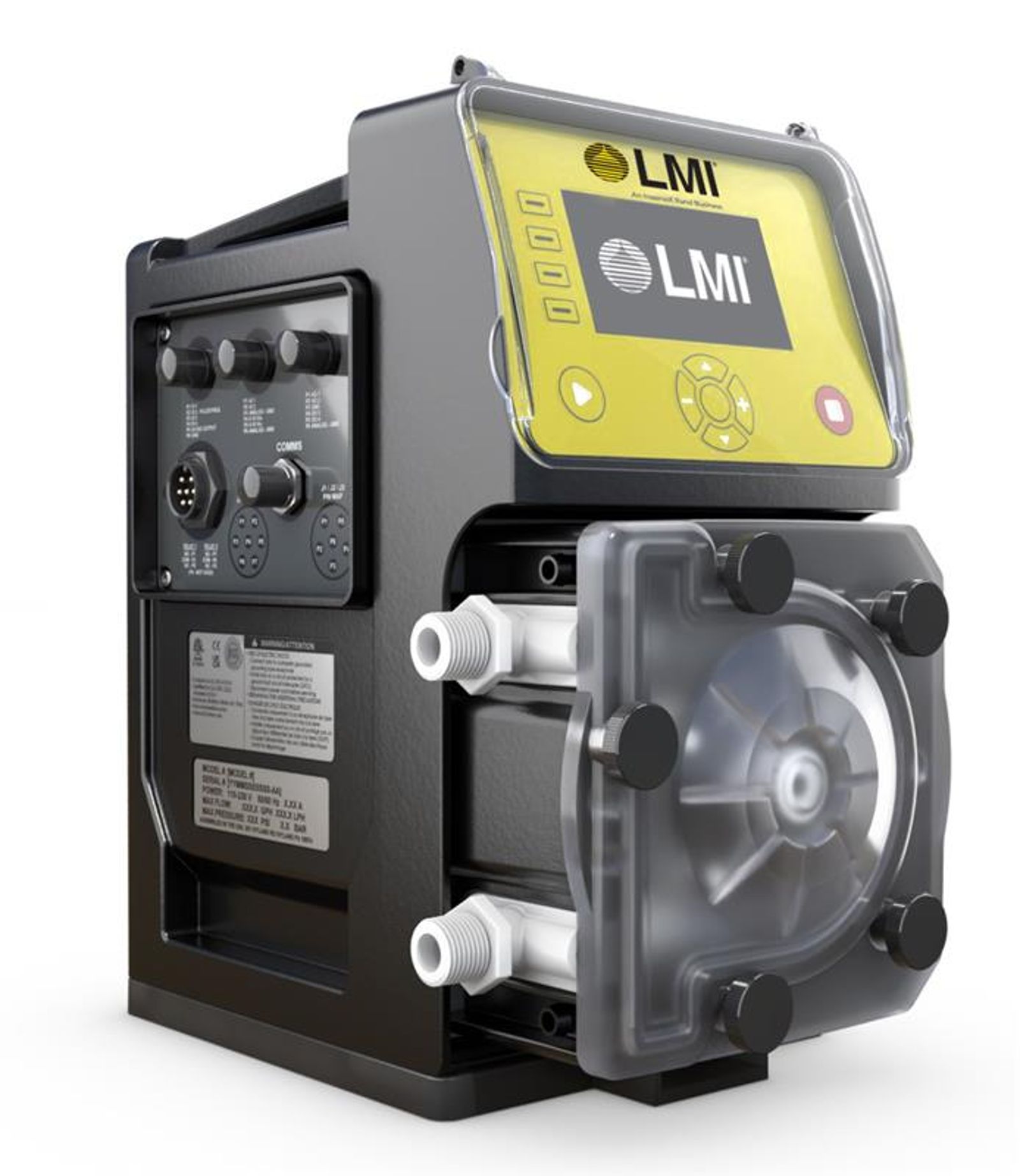

The NEW RTL Series peristaltic pump was thoughtfully designed to maximize performance while minimizing the cost of maintenance and the environmental impact.
Maintenance is simple and safe:
• Completely sealed replaceable tube elements change quickly
• Pump head allows for the safe release of chemicals thereby protecting employees and the environment
• Consumable replacement parts cost significantly less than cartridge replacements
Sustainable:
• Reduced copper
• Uses less energy
• Runs longer and cooler
Costs:
• Reduced maintenance time
• Increased uptime
Simple, Sustainable and Environmentally Friendly Chemical Dosing
- Each rotation gives the same displacement which provides excellent metering characteristics
- Suction lift up to 30’ and no internal slip is possible
- Self-priming peristaltic metering pump delivers smooth chemical feed
- No moving parts in liquid path: tubing is the only wetted item
- No check balls/check valves
- No damage from running dry
- PUMP WILL NOT VAPOR LOCK OR AIR BIND
MODEL | PUMP PERFORMANCE | |
RTL2 | 5.2 gph 20 lph | 100 psi 6.9 bar |
RTL3 | 15.9 gph 60 lph | 100 psi 6.9 bar |
RTL4 | 31.7 gph 120 lph | 60 psi 4.1 bar |
