- 4.33” color LCD display
- Optical tube leak detection standard
- Remote inputs available: 4-20mA, SCADA, Modbus
- 4 configurable digital form-C relays
- Onboard run timer for programmable predictive maintenance
- Equipped with USB port for firmware upgrades and downloading of pump logs
The LMI Pumps portfolio has expanded to include the KBL and KML Series cased-drive peristaltic pumps. The K Series is a versatile and economical peristaltic metering pump for high-precision dosing in water, wastewater treatment, and industrial applications.
These innovative new pumps from LMI offer:
- Next generation safety features:
- A patent-pending offset rotor assembly which releases tube compression during maintenance for improved operator safety and ease of maintenance
- Tube changes do not require users to manipulate the tube while rotor is turning minimizing pinch points
- Offset rotor allows drain and flush of the tube prior to removal
- A best-in-class user experience featuring one-button switching between local and remote operation and all new intuitive user interface with 13 button keypad and 4.33” color display
- No need for complex, multi-step menu navigation each time a mode change is required
- Basic pumps with SCADA and local control, with an optional upgrade to include remote industrial control protocols
- KML Series pumps feature 10,000:1 turndown, NSF-61 certification (pending), and a 5-year warranty
- Each rotation gives the same displacement, which provides excellent chemical metering ability
- Suction lift capacity up to 30 feet (9 meters)
- No backflow or slip allowed
- Self-priming peristaltic metering pump maximizes versatility in installation with fast and convenient commissioning, removing the need for manual priming and check valves
- No moving parts in contact with fluid – tubing is the only wetted item
- No damage from running dry
- Pump will not vapor lock or air bind

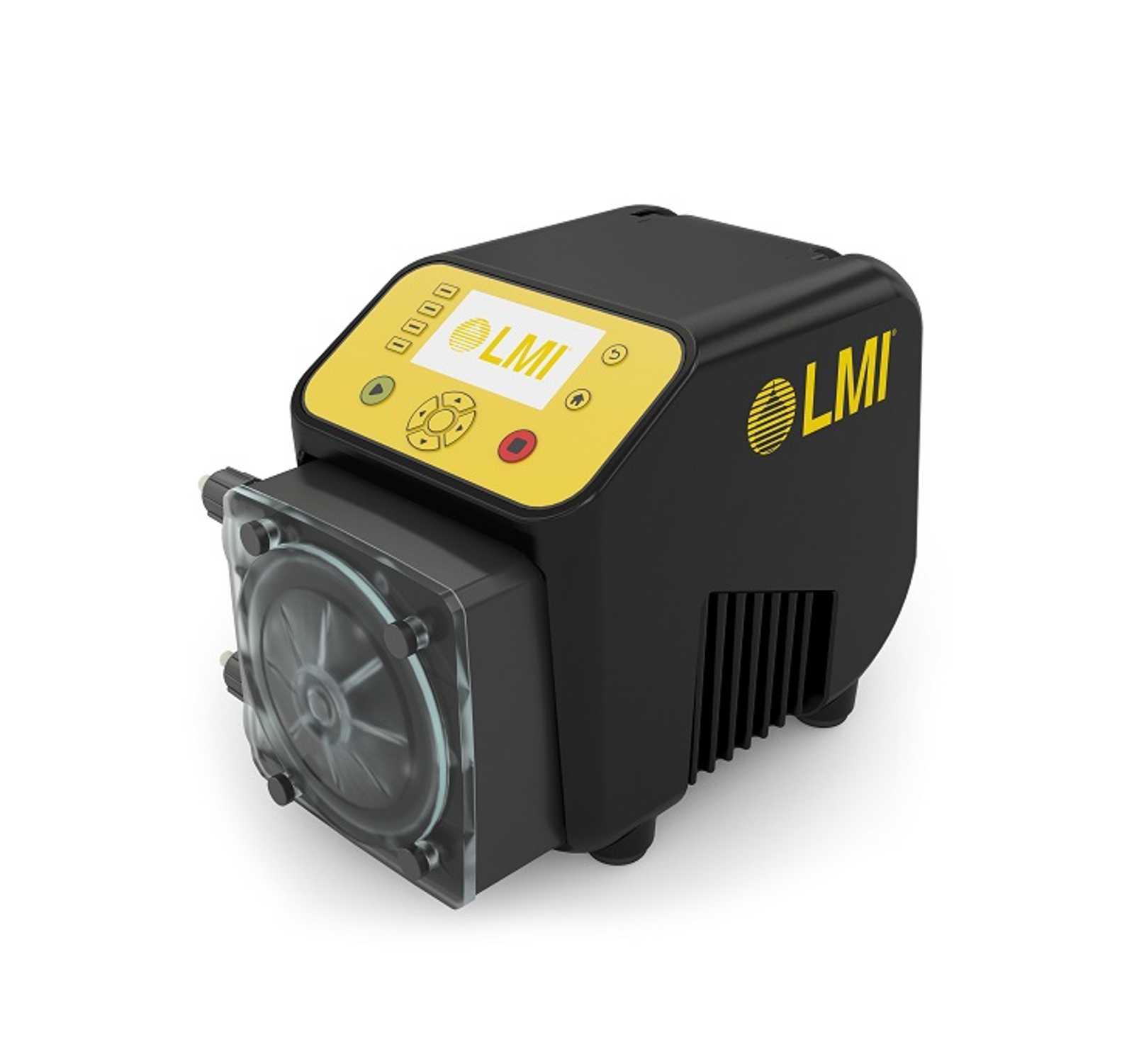

KBL Series Peristaltic Metering Pump
Metric | Imperial | |
|---|---|---|
Capacity |
600 l/h |
158.5 GPH |
Viscosity |
12,000 cps | |
Temperature of pumped liquid |
80℃ |
176℉ |
Discharge pressure |
8.6 bar |
125 PSI |
Enclosure Rating |
IP66/NEMA 4X | |
Turndown Ratio |
2,500:1 | |
Control Options |
SCADA, Modbus TCP/IP, Modbus RTU | |
Power Required |
115/230V, 50/60 hz, 1 ph | |
Motor |
BLDC | |

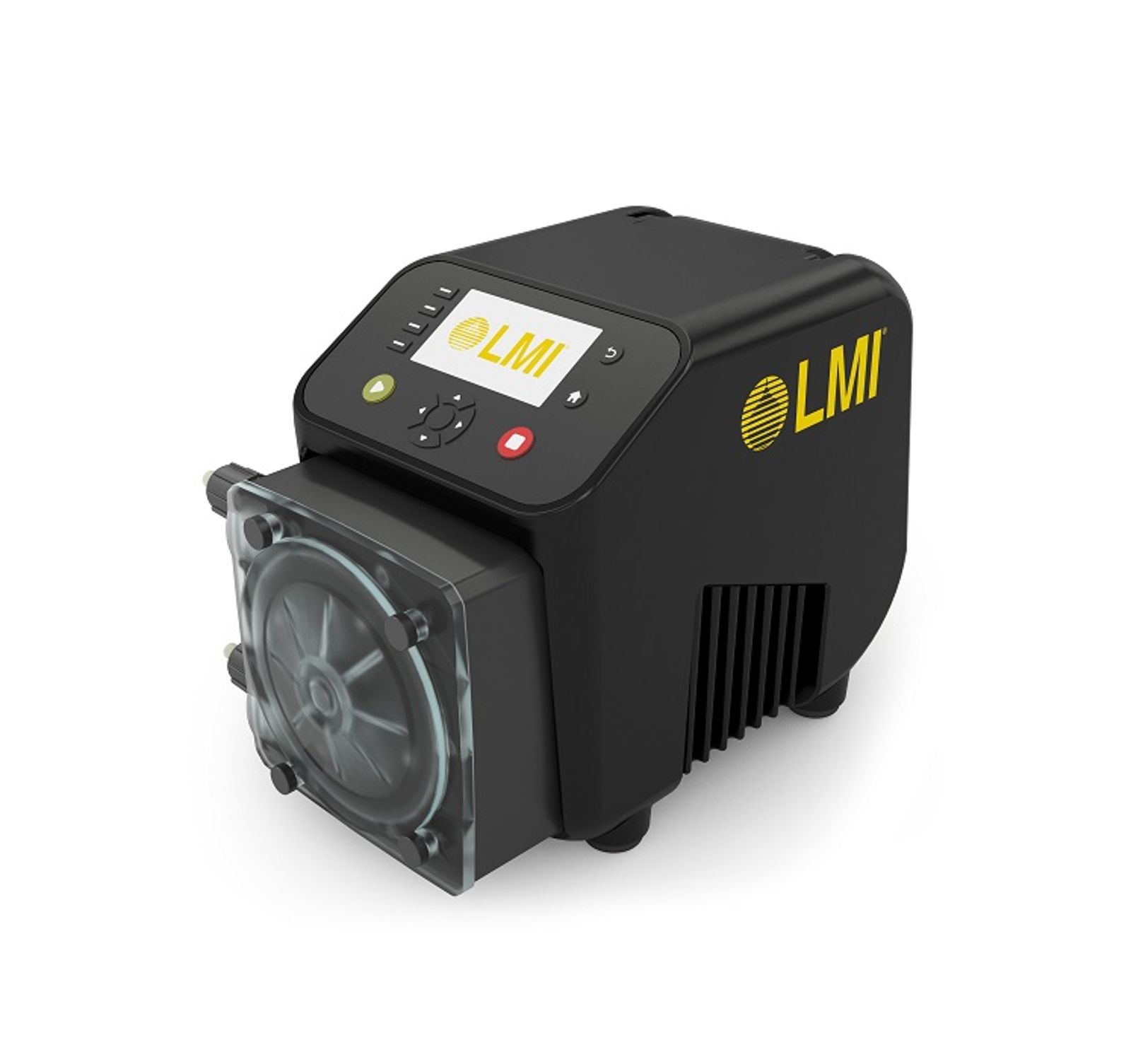

KML Series Peristaltic Metering Pump
Metric | Imperial | |
|---|---|---|
Capacity | 600 l/h | 158.5 GPH |
Viscosity | 12,000 cps | |
Temperature of pumped liquid | 80℃ | 176℉ |
Discharge pressure | 8.6 bar | 125 PSI |
Enclosure Rating | IP66/NEMA 4X | |
Turndown Ratio | 10,000:1 | |
Control Options | SCADA, Modbus TCP/IP, Modbus RTU | |
Power Required | 115/230V, 50/60 hz, 1 ph | |
Motor | BLDC | |
