- Best-in-class electronic components and enhanced control for full SCADA integration and advanced system process control features
- Field upgradable firmware via USB-C drive interface for always current feature set and firmware upgrades
- Rugged construction with NEMA 4X / IP 66 housing for the harshest environments and outdoor use
- Compact footprint for efficient use of space in process applications or OEM configuration with removable mounting baseplate
- Agency certifications - NSF 61, ETL, CE, and UKCA
- 4.3” Color TFT display with Intuitive navigation, enabling easy configuration, full digital manual control of advanced pumps and visibility to running status, alarms, logs, and system configurations
.png?format=pjpeg&width=1600&quality=80&auto=webp)
.png?format=pjpeg&width=1600&quality=50&auto=webp)
Advanced Control with the Most Versatile Chemical Metering Pump on the Market
This new generation of pumps from LMI boasts the most advanced control features from manual speed adjustment, to full SCADA integration and remote control, and available MODBUS and PROFIBUS connected units. All TD Series Liquid Ends are new from LMI with improved materials, double ball check valves, and newly designed over-molded diaphragms proven to operate at continuous duty for over 40 million strokes. Liquid Ends are designed with proven FASTPRIME™ technology for quick and easy commissioning and priming of the units. Available in 3 models, Manual, Advanced, and COMMs, the TD Series pump fits seamlessly into your process control application.
Output Range | .003 - 16.0 GPH |
|---|---|
Pressure Range | 25 - 250 PSI |
Max Stroke | 187 SPM |
Installation | Indoor/Outdoor |
Supply Voltage | 100-230V / 50-60Hz |
Steady State Accuracy | +/-1.5% |
Repeatable Accuracy | +/-3% |
| PSI | GPH | BAR | LPH |
|---|---|---|---|---|
TDX2 | 250 | 2.5 | 17.2 | 9.5 |
TDX3 | 150 | 4 | 10.3 | 15.1 |
TDX4 | 100 | 10 | 8.9 | 37.9 |
TDX5 | 75 | 16 | 5.2 | 60.6 |
TD Series - Overview Video
Experience the Future of Things to Come
TD Series - Connectivity Instructions Overview Video
Smart Chemical Metering with the TD Series
In modern chemical dosing systems, accuracy, connectivity, and safety are essential for reliable operations. From adapting to changing flow requirements to enabling real-time monitoring and preventing hazardous leaks, advanced metering technology plays a critical role.
The LMI TD Series Chemical Metering Pumps combine wide turndown capability, seamless SCADA integration, and intelligent leak detection to deliver a flexible and secure dosing solution. Together, these features empower operators to maintain precise control, optimize efficiency, and protect both personnel and equipment across a wide range of industrial applications.

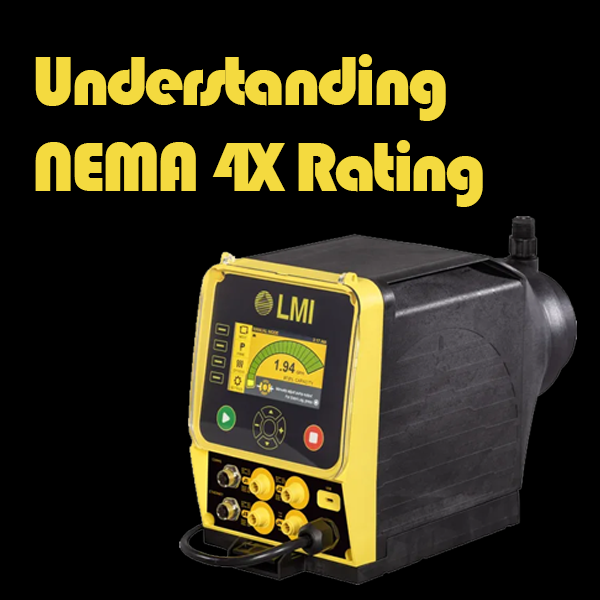

Understanding NEMA Enclosures & Environmental Protection
LMI’s TD Series pumps are engineered with superior protection in mind. Instead of relying solely on NEMA 4X terminology, these pumps are equipped with robust electrical enclosures that meet or exceed NEMA 3R and NEMA 12 specifications. These standards ensure the equipment remains fully operational in the face of windblown dust, rain, sleet, splashing water, temperature variation and the formation of ice. Let's explore why the TD Series pumps are ideal for protecting critical systems and how their design safeguards your investment.

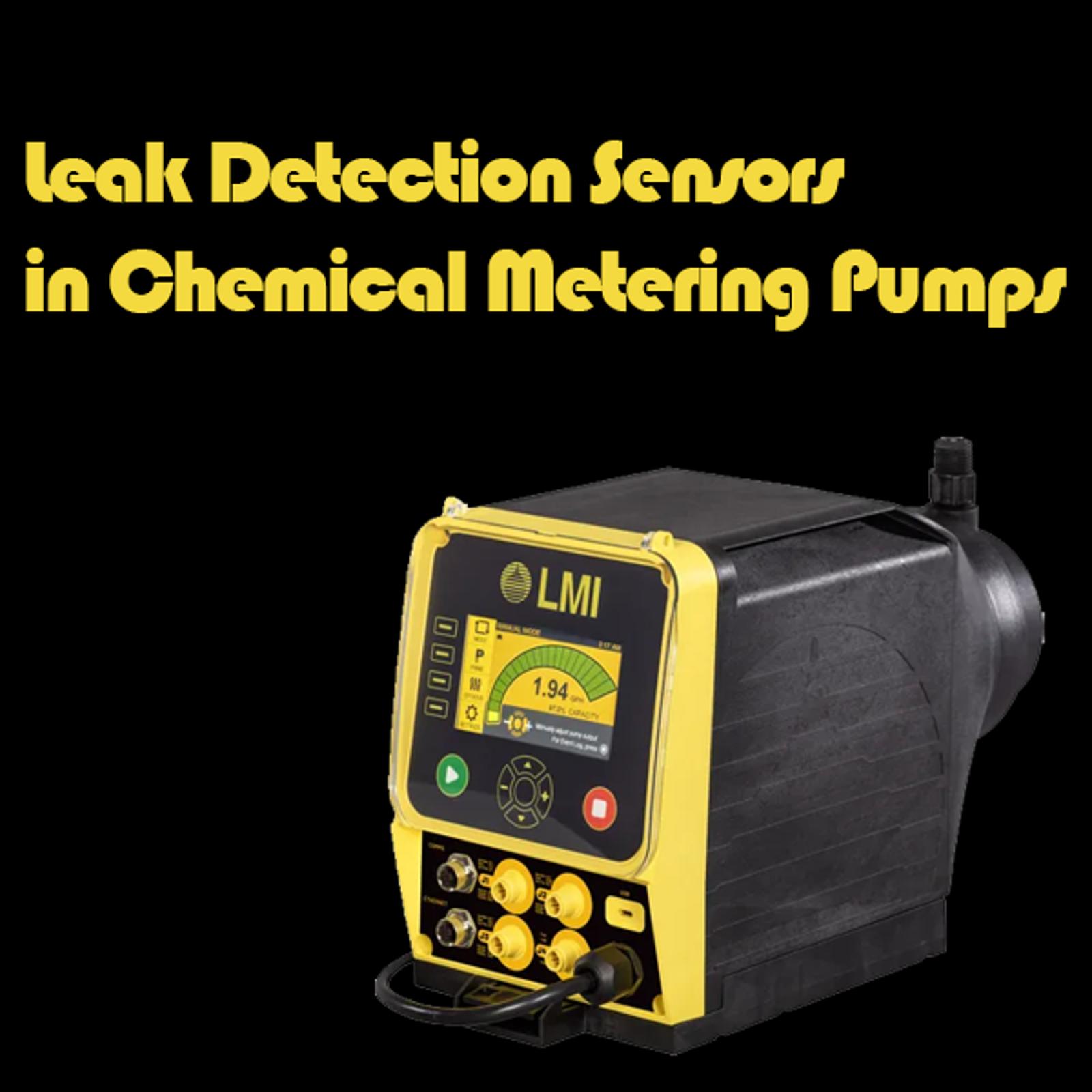

Leak Detection Sensors in Chemical Metering Pumps
LMI TD Series are engineered with smart technology, including chemical leak sensors with automatic alarms and control system integration for rapid response to failures.

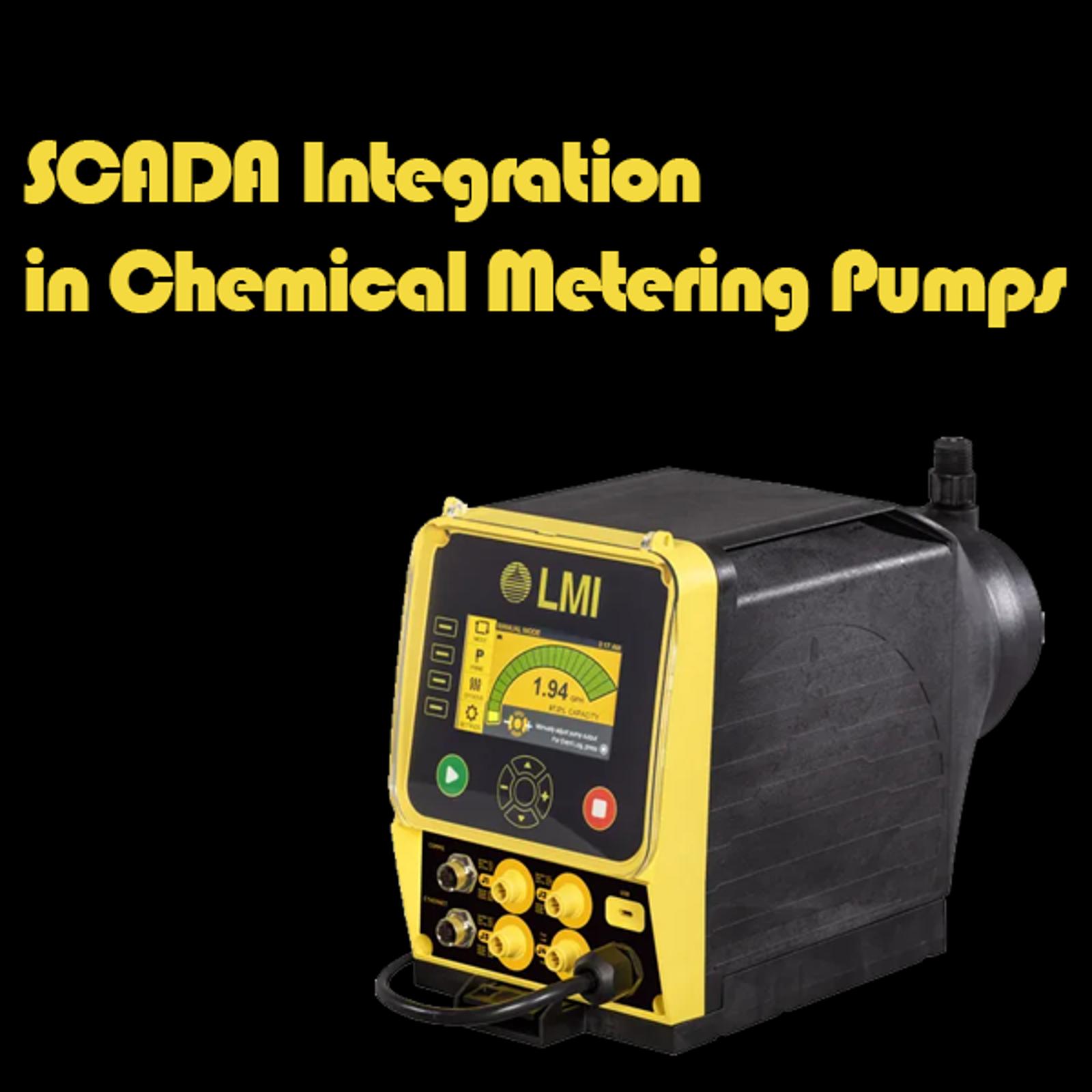

SCADA Integration & the TD Series Metering Pump
LMI's TD Series Chemical Metering Pumps stand out for their full SCADA integration capabilities, offering unmatched connectivity and control. In this post, we’ll explore what SCADA is, how it functions, and how the TD Series supports seamless integration.

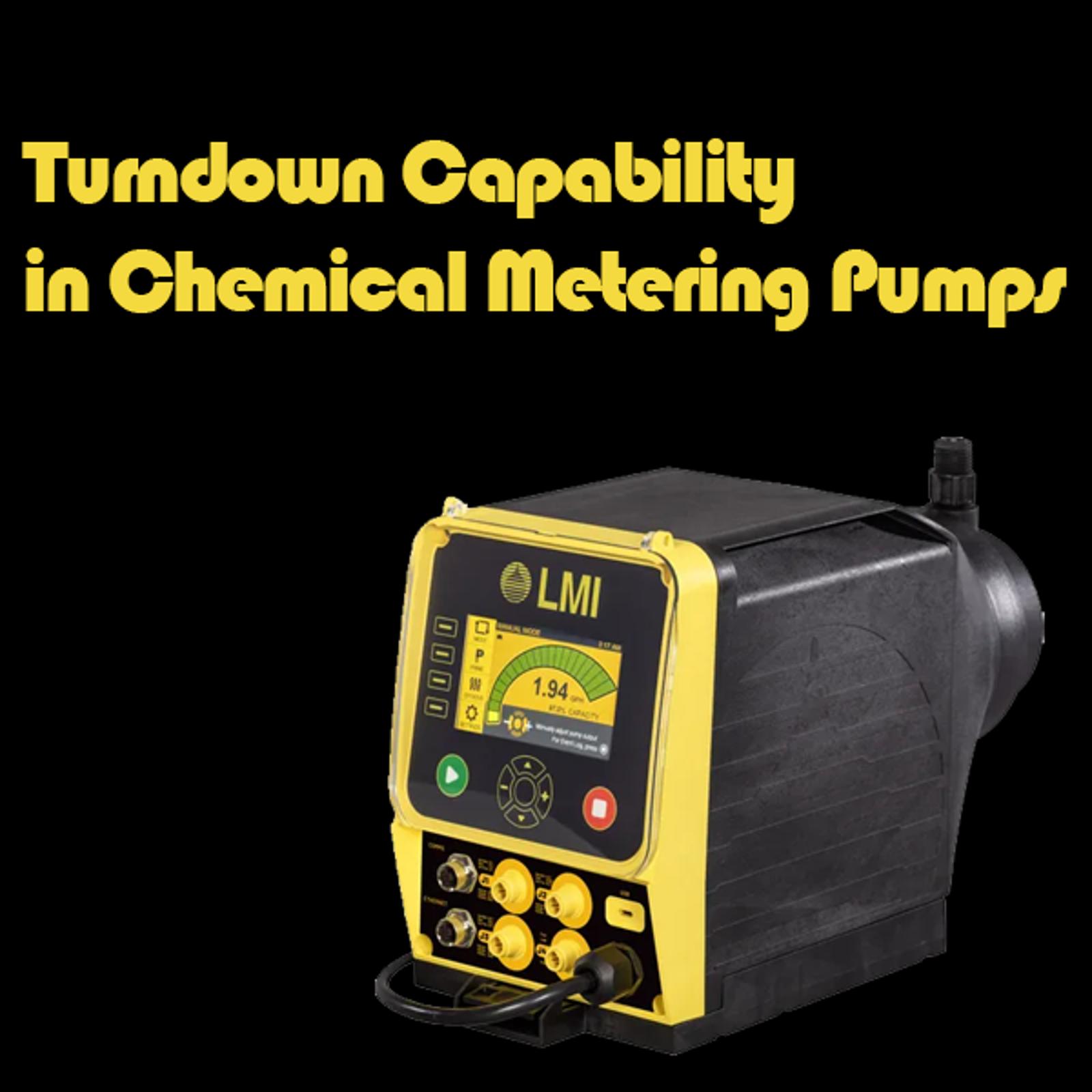

Turndown Capability in Chemical Metering Pumps
The TD Series from LMI offers a wide turndown range, providing unmatched versatility in metering applications. In this post, we’ll explore what turndown means, why it matters, and how the TD Series delivers.
